Chapter 15: Design Google Drive

Introduction

Google Drive is a cloud-based file storage and synchronization service that allows users to store, access, and share files from various devices. This chapter discusses designing a scalable system with the following features: - File Upload and Download - File Sync Across Devices - File Sharing - File Revision History - Notifications for Edits, Deletes, and Shares

Step 1: Understanding the Problem

Key Requirements

Functional Requirements:

  • Upload and download files.
  • Sync files across multiple devices.
  • Maintain file revisions.
  • Enable file sharing with permissions.
  • Send notifications on file edits, deletions, and shares.

Non-Functional Requirements:

  • Reliability: Data loss is unacceptable.
  • Fast Sync Speed: Avoid user impatience with delayed syncing.
  • Bandwidth Efficiency: Minimize unnecessary data usage.
  • Scalability: Handle 10 million daily active users (DAU).
  • High Availability: Operate seamlessly during server failures or network issues.

Constraints and Assumptions

  • Users get 10 GB free space.
  • Maximum file size: 10 GB.
  • Average file upload size: 500 KB.
  • Upload frequency: 2 files per day per user.
  • Total storage required: 500 PB.

Step 2: High-Level Design

Single-Server Setup

A basic setup includes: 1. Web Server: Handles uploads and downloads. 2. Metadata Database: to keep track of metadata like user data, login info, files info/ 3. Storage Directory: Holds files organized by namespaces.

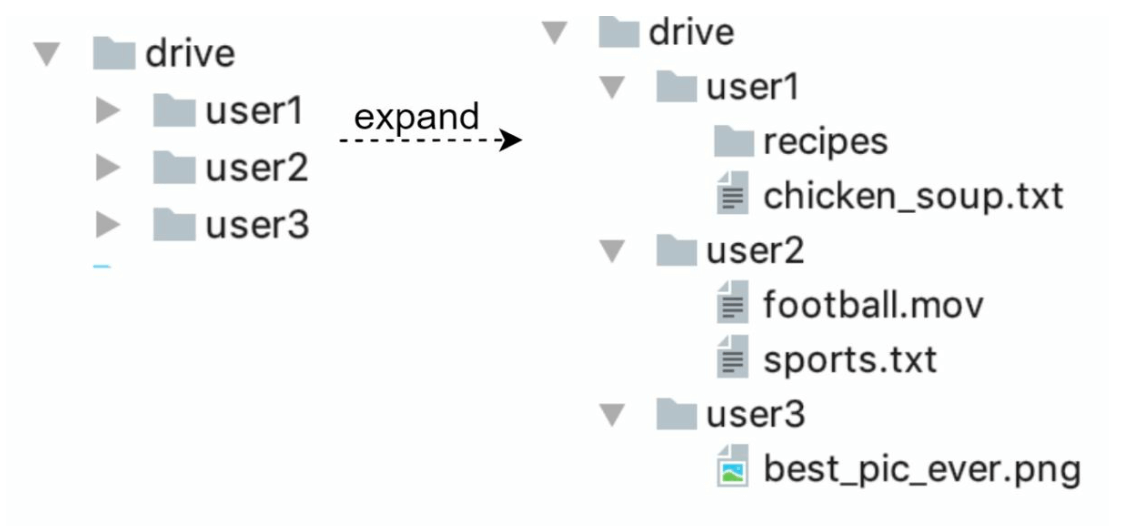

Namespaces
  • A web server and a directory called drive/ is set up as the root directory to store uploaded files.
  • Under drive/ directory, there is a list of directories called namespaces.
  • Each namespace contains all the uploaded files for that user.
  • Each file or folder can be uniquely identified by joining the namespace and the relative path.

This design serves as a starting point but is inadequate for scaling.

APIs

  1. Upload a file to Google Drive: Two types of uploads are supported
    • Simple upload: Used when file size is small.
    • Resumable upload:
      • Endpoint: https://api.example.com/files/upload?uploadType=resumable
      • Send the initial request to retrieve the resumable URL.
      • Upload the data and monitor upload state
      • If upload is disturbed, resume the upload.
  2. Download a file from Google Drive: To download a file
    • Endpoint: https://api.example.com/files/download
  3. Get file revisions:
    • Endpoint: https://api.example.com/files/list_revisions

Moving to Distributed Systems

Improvements:

  1. Sharding: Split storage across servers based on user_id.

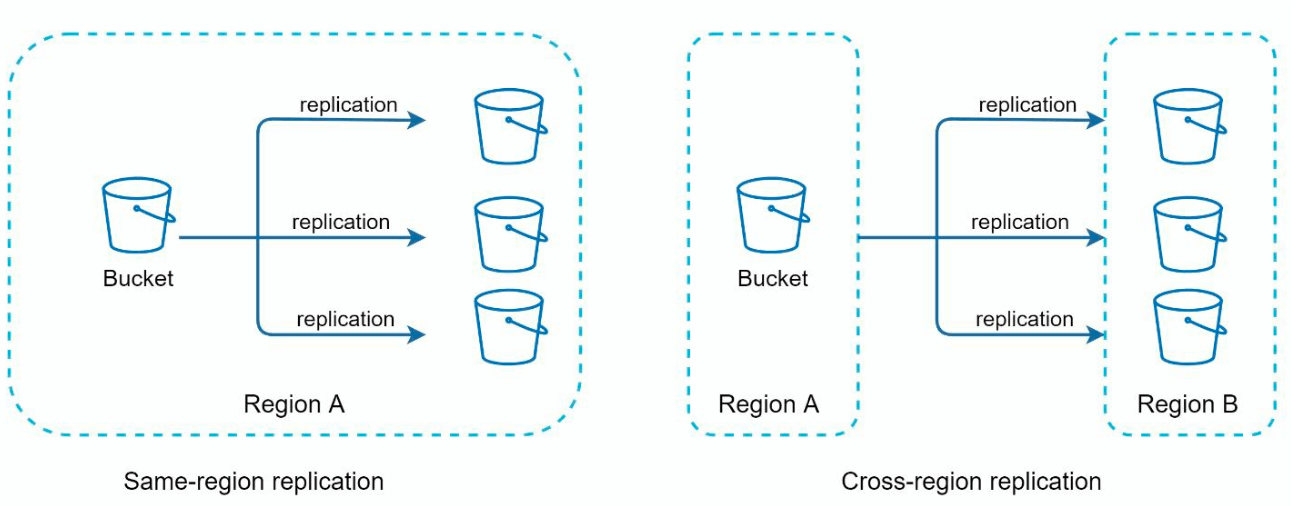

  2. Amazon S3: Use S3 for scalable and redundant file storage with cross-region replication.

    Replication

  3. Load Balancer: Distribute traffic across multiple web servers.

  4. Metadata Database Replication: Ensure availability through database sharding and replication.

Sync Conflicts:

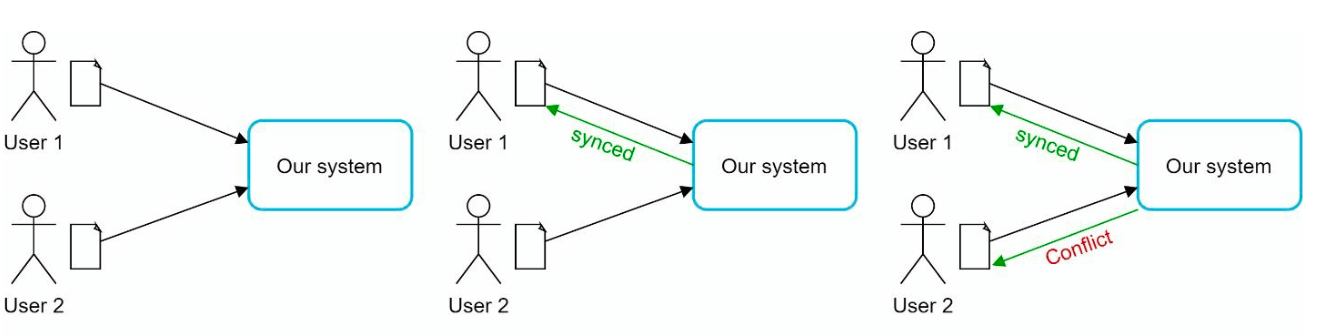

For a large storage system like Google Drive, sync conflicts happen from time to time. When two users modify the same file or folder at the same time, a conflict happens.

Sync Conflicts
  • In the example user 1 and user 2 tries to update the same file at the same time, but user 1’s file is processed by our system first.
  • User 1’s update operation goes through, but, user 2 gets a sync conflict.
  • The system presents both copies of the same file: user 2’s local copy and the latest version from the server.
  • User 2 has the option to merge both files or override one version with the other.

Improved design

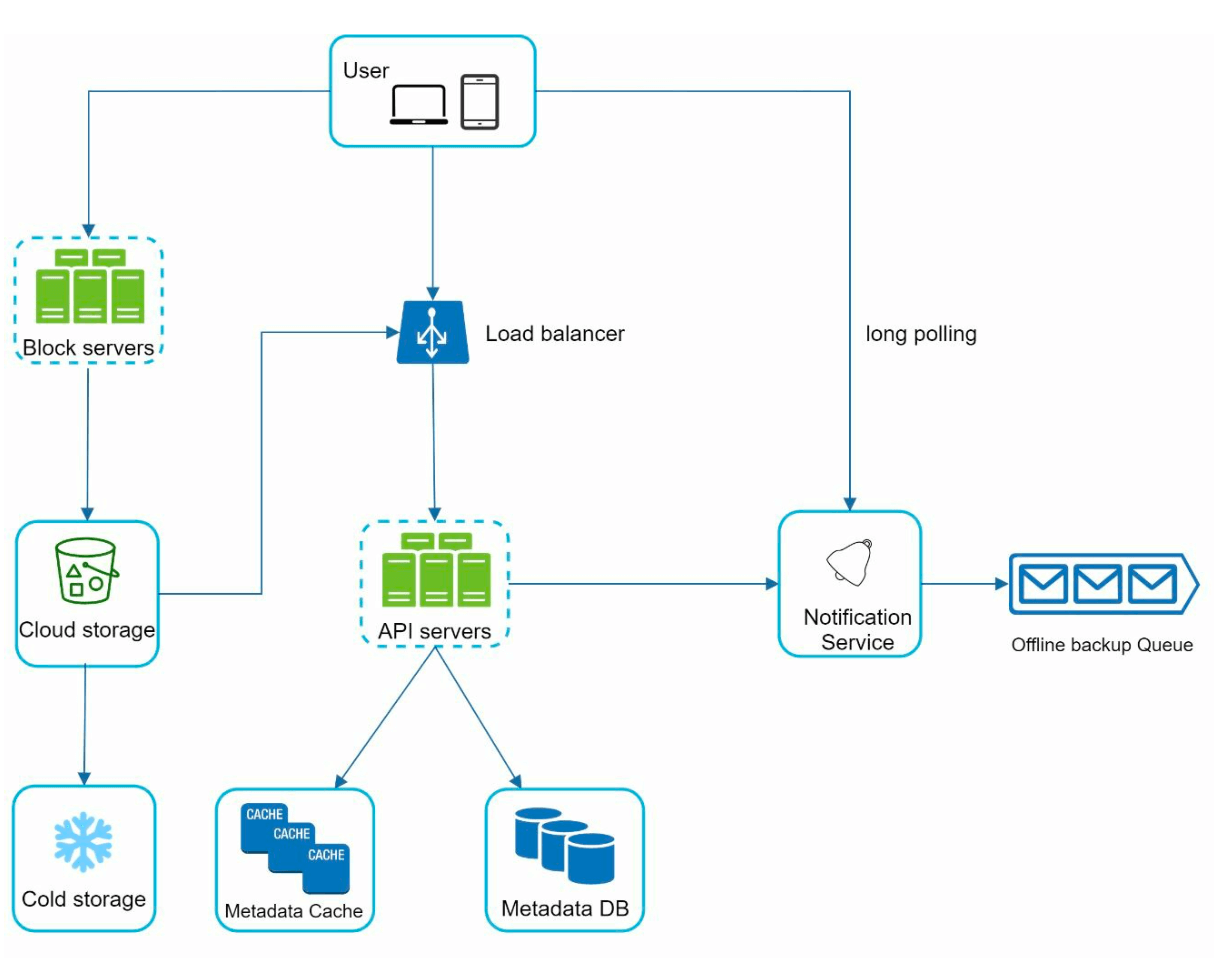

High Level Design

  1. User Interaction:: Users access the application via browser or mobile app.

  2. Block Servers:

  3. Files are split into 4 MB blocks (maximum size) and assigned unique hash values.
  4. Blocks are stored independently in cloud storage (e.g., Amazon S3).

  5. File reconstruction involves joining blocks in a specific order.

  6. Cloud Storage: Blocks are stored in cloud storage for scalability and redundancy.

  7. Cold Storage: Inactive files are moved to cold storage to reduce costs.

  8. Load Balancer: Distributes requests evenly among API servers to ensure efficient operation.

  9. API Servers:

  10. Handle user authentication, profile management, and file metadata updates.

  11. Manage all non-uploading workflows.

  12. Metadata Database and Cache:

  13. Stores metadata for users, files, blocks, and versions.

  14. Frequently accessed metadata is cached for faster retrieval.

  15. Notification Service:

  16. A publisher/subscriber system that notifies clients about file changes (add, edit, delete).

  17. Ensures clients can pull the latest updates.

  18. Offline Backup Queue: Temporarily stores file change information for offline clients to sync when back online.

Step 3: Design Deep Dive

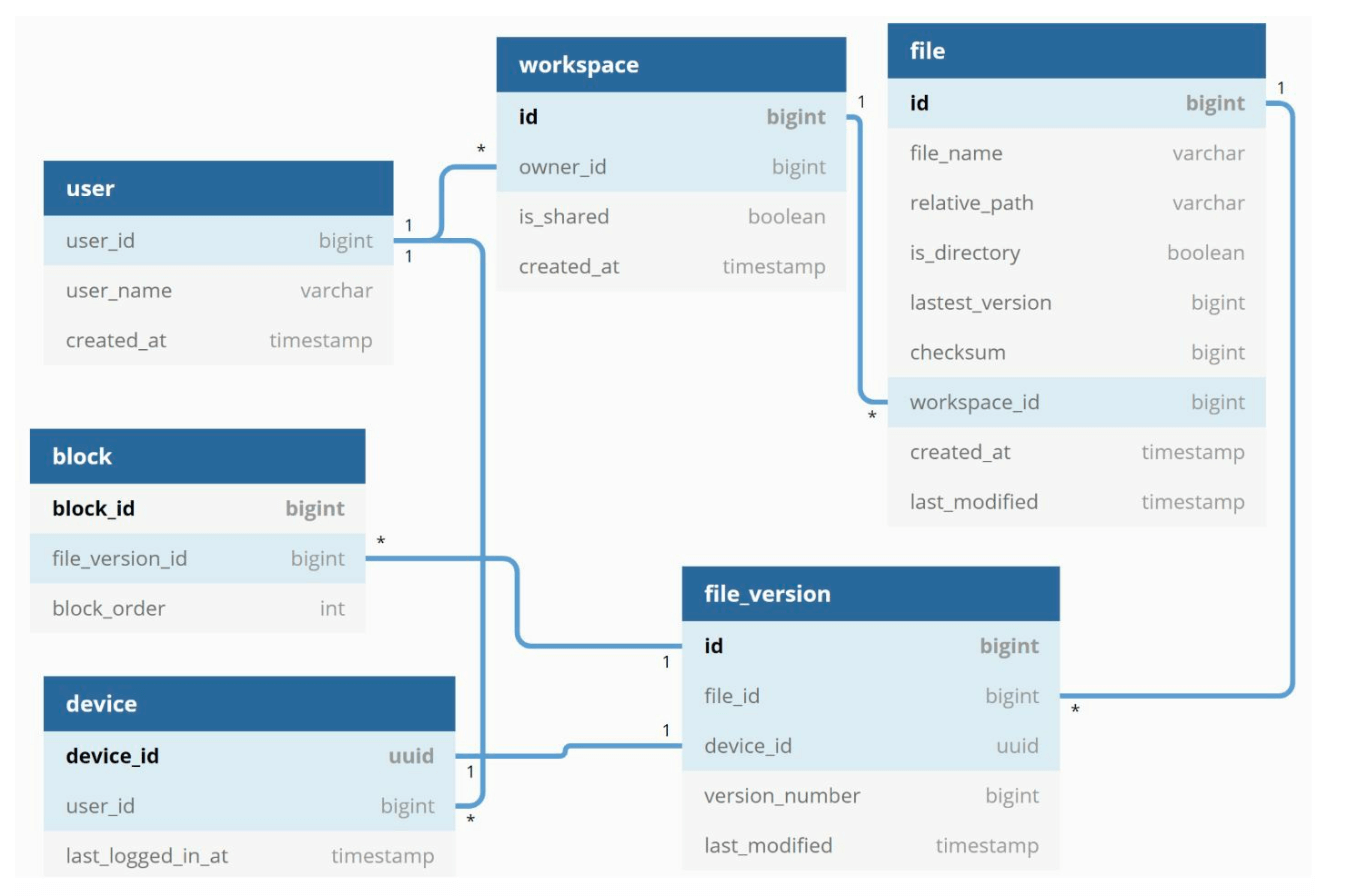

Metadata Database

A highly simplified is shown below version as it only includes the most important tables and fields.

Schema Design:

  • User Table: Stores user profiles and preferences.
  • File Table: Maintains file metadata (e.g., size, name, path).
  • Block Table: Tracks file blocks for reconstructing files.
  • File Version Table: Stores file revision history.
Metadata Database

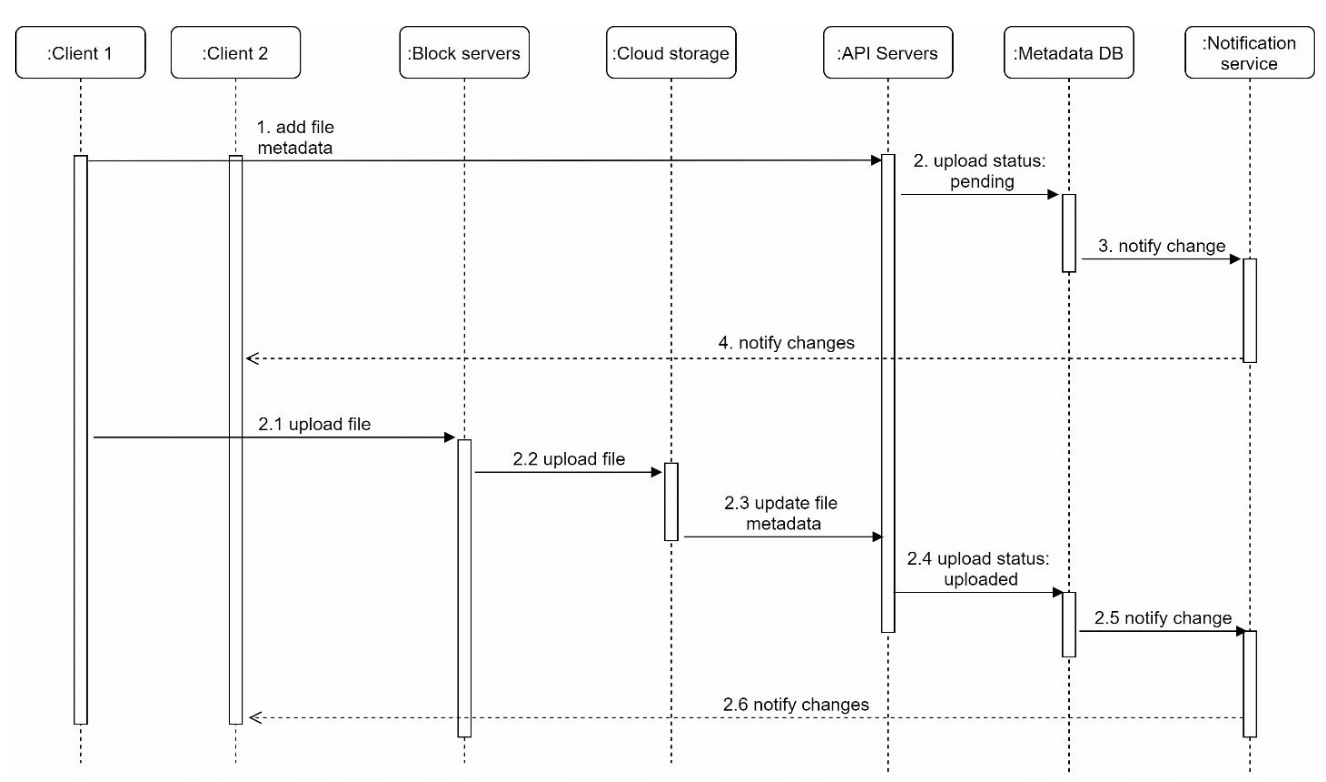

File Upload Flow

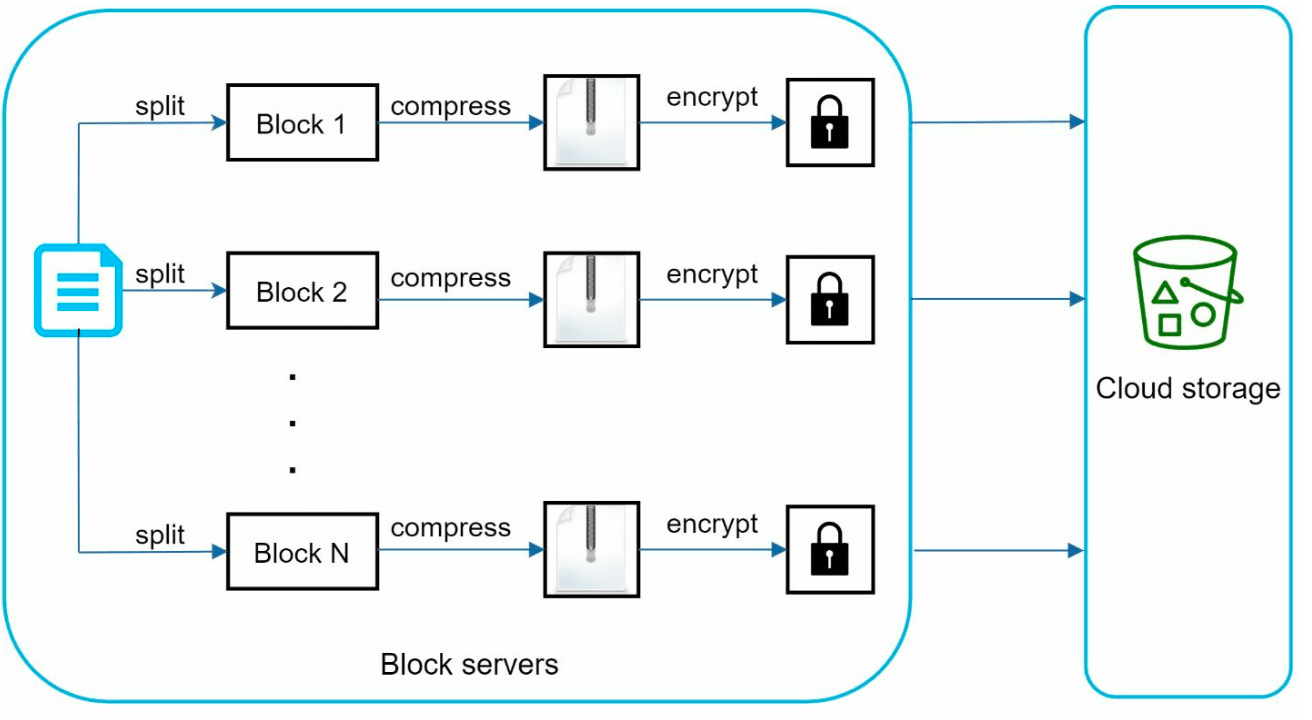

  1. File Upload:
  2. File is split into blocks, compressed, and encrypted by the block server.
  3. Blocks are uploaded to block servers and stored in S3.
  4. Metadata Upload:
  5. Client sends metadata to the API server.
  6. Metadata is stored in the database with status pending.
  7. Completion:
  8. S3 triggers a callback to update the file status to uploaded.
  9. Notification service informs relevant users.
Upload Flow

File Sync

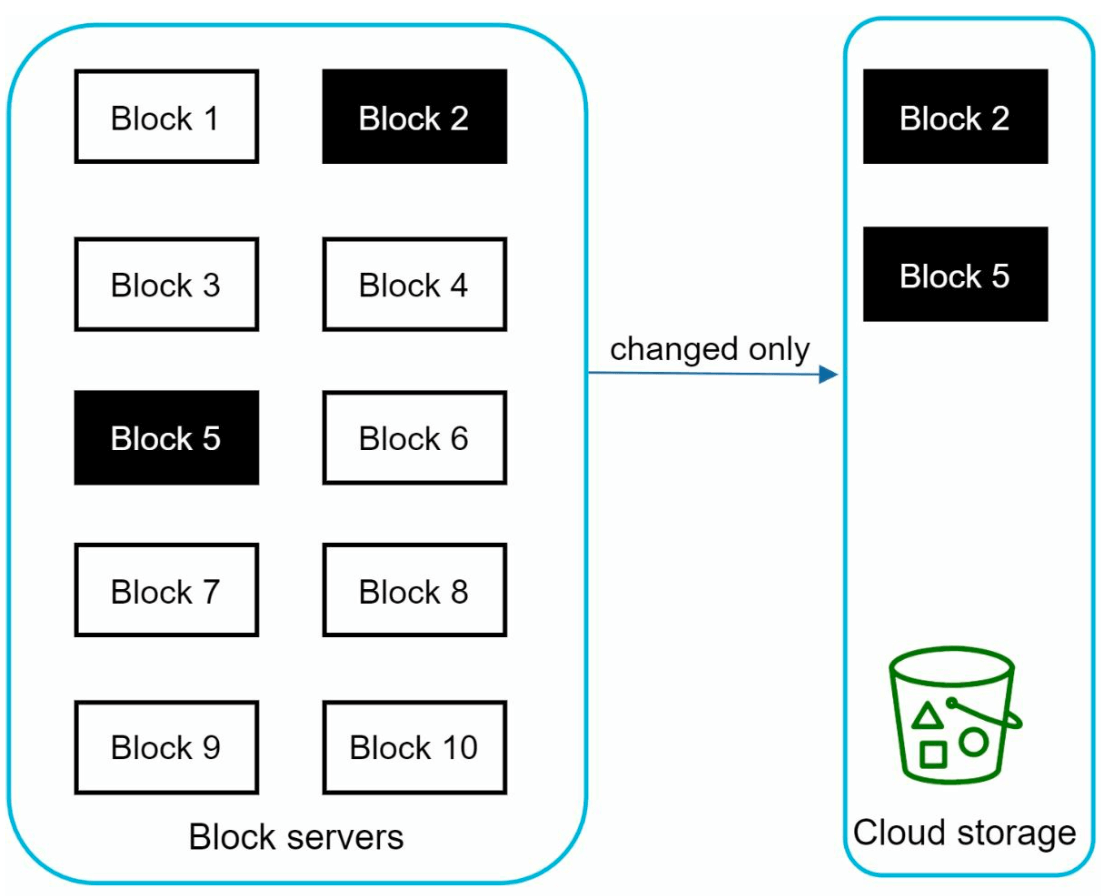

  1. Delta Sync: Transfer only modified blocks instead of the entire file.

    Delta Sync

  2. Compression: Blocks are compressed using compression algorithms depending on file types.

  3. Conflict Resolution:
  4. First processed version wins.
  5. Conflicting versions are saved separately for user resolution.
File Synce

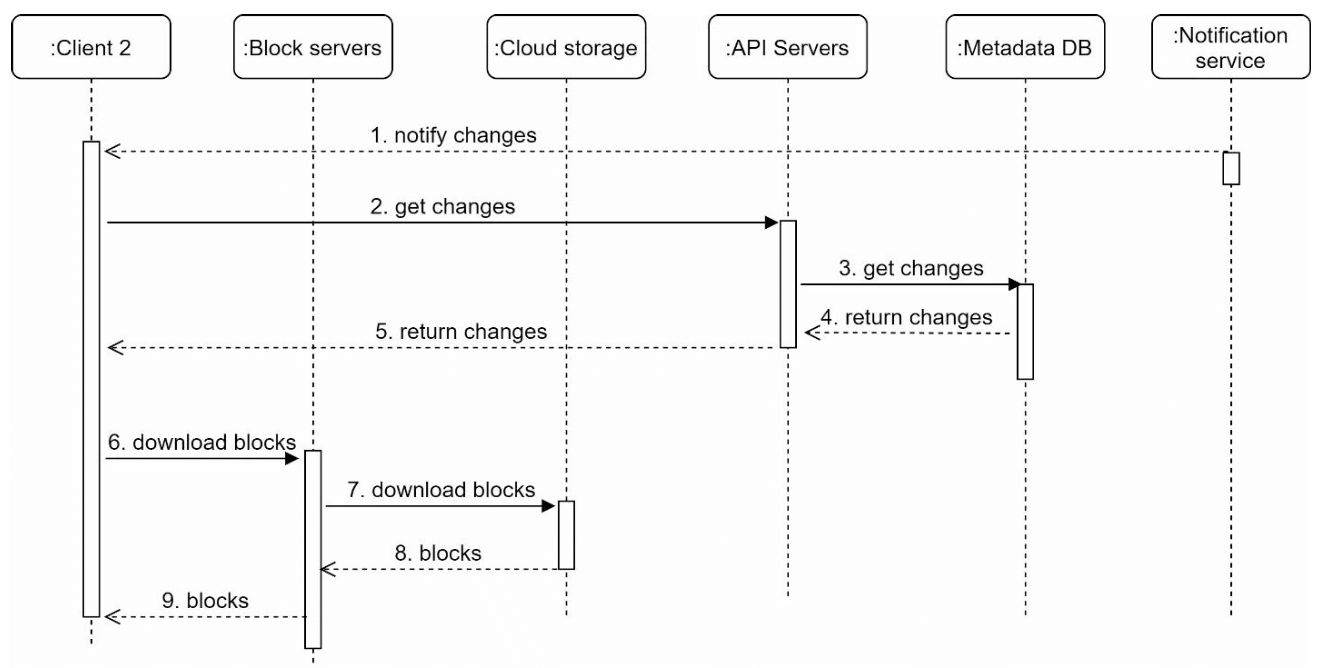

File Download Flow

Download flow is triggered when a file is added or edited elsewhere. There are two ways a client can know: - If client A is online while a file is changed by another client, notification service will inform client A. - If client A is offline while a file is changed by another client, data will be saved to the cache. When the offline client is online again, it pulls the latest changes.

Once a client knows a file is changed, it first requests metadata via API servers, then downloads blocks to construct the file.

  1. Trigger: Notification service informs the client of file updates.
  2. Metadata Fetch: Client retrieves updated metadata via API.
  3. Block Download: Client downloads updated blocks from block servers and reconstructs the file.
Upload Flow

Notification Service

  1. Purpose: Keeps clients updated about file changes.
  2. Mechanism: Implements long polling for asynchronous notifications.
  3. Example: When a file is added, edited, or deleted, notifications are pushed to all relevant clients.

Storage Optimization

  1. De-duplication: Remove duplicate blocks at the account level using hash-based comparisons.
  2. Versioning Strategy:
  3. Limit the number of saved revisions.
  4. Prioritize recent versions for frequently edited files.
  5. Cold Storage: Move rarely accessed files to cheaper storage solutions (e.g., Amazon S3 Glacier).

Failure Handling

  1. Load Balancer Failure: Secondary load balancer becomes active.
  2. Block Server Failure: Pending tasks are reassigned to other servers.
  3. Metadata Database Failure:
  4. Promote a slave node to master.
  5. Redirect traffic to remaining replicas.
  6. Cloud Storage Failure: Use cross-region replication to fetch unavailable files.
  7. Notification Service Failure: Clients reconnect to alternative servers.
